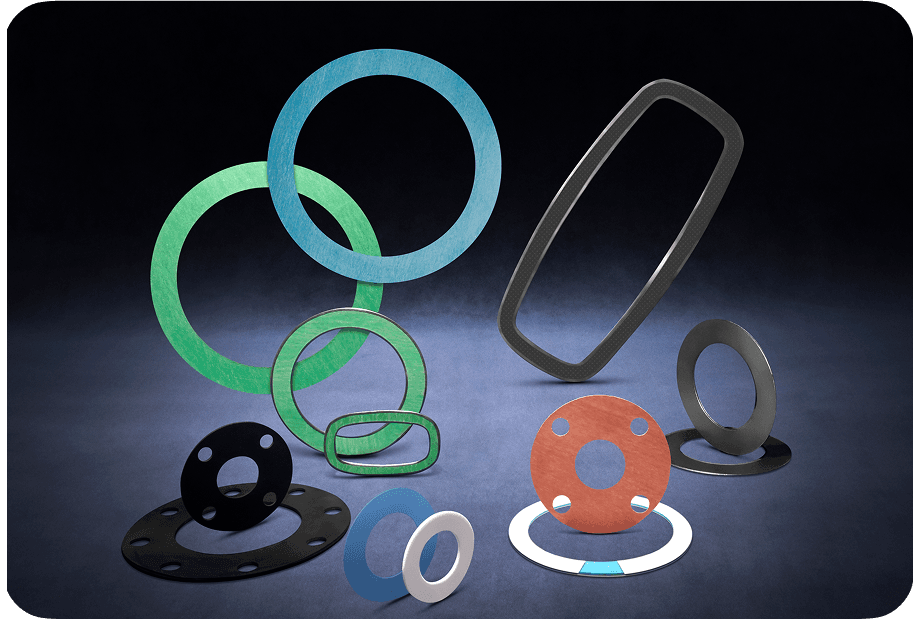

FLAT MICA GASKET

ساختار محصول

گسکت های دما بالای میکا به طور خاص برای کاربرد در دماهای بالا تا 1000 درجه سانتی گراد مورد استفاده قرار می گیرند. میکا متریال آب بندی صد در صد بدون آزبستی است که در برابر اکثر مواد شیمیایی مانند حلال ها ، اسید ها ، و نفت خام و معدنی مقاوم می باشد.
به دلیل خواص آب بندی عالی در دماهای بالا، متریال گسکت های دما بالای میکا به طور خاص برای اب بندی اگزوز (خودرو)، توربین گاز، مشعل گاز و نفت، مبدل های حرارتی و سایر اتصالات فلنج با درجه حرارت بالا مناسب هستند. متریال آب بندی میکا متشکل از درصد بالایی از میکا (فلوگوپیت) می باشد که با یک لاستیک سیلیکونی تقویت شده است. میکا یک سیلیکات آلومینیمی با منشا معدنی است که ساختاری غیر فیبری و آرام دارد

ابعاد:

1
ابعاد با استاندارد ASME B16.21
2
مطابق با درخواست مشتری

Dimensions suitable for ANSI Standard Flanges

ASME B16.21 Class 150:

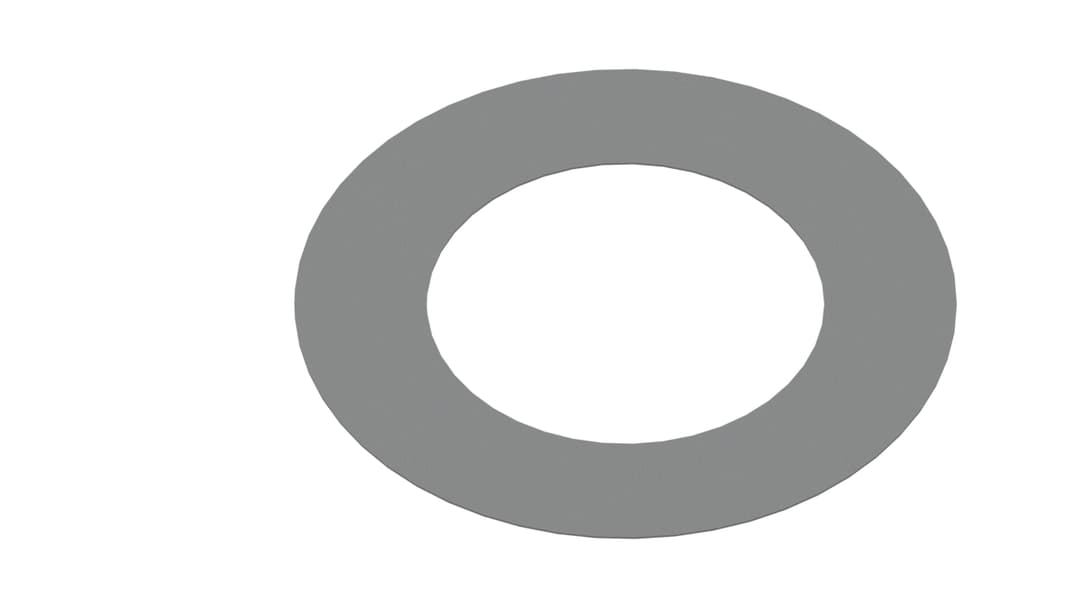

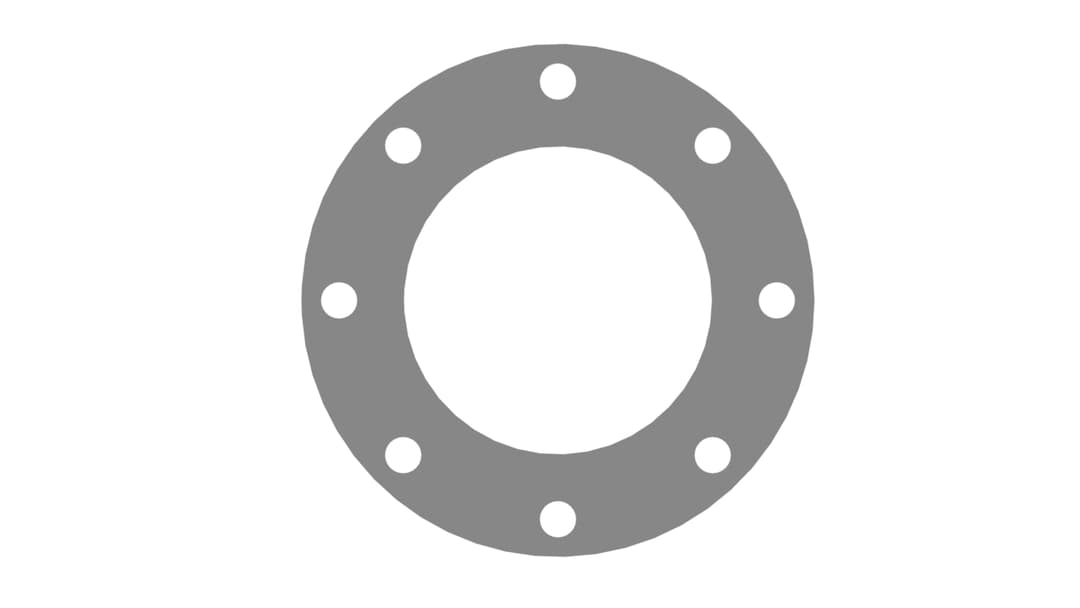

Full Face gasket				I.B.C. Gasket	Nominal Bore (inches)
Bolt P.C.D.(mm)	Hole Diameter(mm)	Number of Bolt Holes	OD x ID (mm)	OD x ID (mm)	Nominal Bore (inches)
60	16	4	89 x 21	48 x 21	1/2
70	16	4	95 x 27	57 x 27	3/4
79	16	4	108 x 33	67 x 33	1
89	16	4	117 x 42	76 x 42	1 1/4
98	16	4	127 x 48	86 x 48	1 1/2
121	19	4	152 x 60	105 x 60	2
140	19	4	178 x 73	124 x 73	2 1/2
152	19	4	191 x 89	137 x 89	3
178	19	8	216 x 102	162 x 102	3 1/2
191	19	8	229 x 114	175 x 114	4
216	22	8	254 x 141	197 x 141	5
241	22	8	279 x 168	222 x 168	6
298	22	8	343 x 219	279 x 219	8
362	25	12	406 x 273	340 x 273	10
432	25	12	483 x 324	410 x 324	12
476	29	12	533 x 356	451 x 356	14
540	29	16	597 x 406	514 x 406	16
578	32	16	635 x 457	549 x 457	18
635	32	20	699 x 508	606 x 508	20
749	35	20	813 x 610	718 x 610	24

ASME B16.21 Class 300:

Full Face gasket				I.B.C. Gasket	Nominal Bore (inches)
Bolt P.C.D.(mm)	Hole Diameter(mm)	Number of Bolt Holes	OD x ID (mm)	OD x ID (mm)	Nominal Bore (inches)
67	16	4	95 x 21	54 x 21	1/2
83	19	4	117 x 27	67 x 27	3/4
89	19	4	124 x 33	73 x 33	1
98	19	4	133 x 42	83 x 42	1 1/4
114	22	4	156 x 48	95 x 48	1 1/2
127	19	8	165 x 60	111 x 60	2
149	22	8	191 x 73	130 x 73	2 1/2
168	22	8	210 x 89	149 x 89	3
184	22	8	229 x 102	165 x 102	3 1/2
200	22	8	254 x 114	181 x 114	4
235	22	8	279 x 141	216 x 141	5
270	22	12	318 x 168	251 x 168	6
330	25	12	381 x 219	308 x 219	8
387	29	16	445 x 273	362 x 273	10
451	32	16	521 x 324	422 x 324	12

Full Face gasket				LB.C. Gasket	Nominal Bore (inches)
Bolt P.C.D.(mm)	Hole Diameter(mm)	Number of Bolt Holes	OD x ID (mm)	OD x ID (mm)	Nominal Bore (inches)
514	32	20	584 x 356	486 x 356	14
572	35	20	648 x 406	540 x 406	16
629	35	24	711 x 457	597 x 457	18
686	35	24	775 x 508	654 x 508	20
813	41	24	914 x 610	775 x 610	24

ASME B16.21 Class 600:

Full Face gasket				LB.C. Gasket	Nominal Bore (inches)
Bolt P.C.D.(mm)	Hole Diameter(mm)	Number of Bolt Holes	OD x ID (mm)	OD x ID (mm)	Nominal Bore (inches)
67	16	4	95 x 21	54 x 21	1/2
83	19	4	117 x 27	67 x 27	3/4
89	19	4	124 x 33	73 x 33	1
98	19	4	133 x 42	83 x 42	1 1/4
114	22	4	156 x 48	95 x 48	1 1/2
127	19	8	165 x 60	111 x 60	2
149	22	8	191 x 73	130 x 73	2 1/2
168	22	8	210 x 89	149 x 89	3
184	25	8	229 x 102	162 x 102	3 1/2
216	25	8	273 x 114	194 x 114	4
267	29	8	330 x 141	241 x 141	5
292	29	12	356 x 168	267 x 168	6
349	32	12	419 x 219	321 x 219	8
432	35	16	508 x 273	400 x 273	10
489	35	20	559 x 324	457 x 324	12
527	38	20	603 x 356	492 x 356	14
603	41	20	686 x 406	565 x 406	16
654	44	20	743 x 457	613 x 457	18
724	44	24	813 x 508	683 x 508	20
838	51	24	940 x 610	791 x 610	24

ASME B16.47 A Class 150:

Full Face gasket				LB.C. Gasket	Nominal Bore (inches)
Bolt P.C.D.(mm)	Hole Diameter(mm)	Number of Bolt Holes	OD x ID (mm)	OD x ID (mm)	Nominal Bore (inches)
692	35	20	749 x 559	660 x 559	22 (550)
806	35	24	870 x 660	775 x 660	26 (650)
864	35	28	927 x 711	832 x 711	28 (700)
914	35	28	984 x 762	883 x 762	30 (750)
978	41	28	1060 x 813	940 x 813	32 (800)
1029	41	32	1111 x 864	991 x 864	34 (850)
1086	41	32	1168 x 914	1048 x 914	36 (900)

Full Face gasket				LB.C. Gasket	Nominal Bore (inches)
Bolt P.C.D.(mm)	Hole Diameter(mm)	Number of Bolt Holes	OD x ID (mm)	OD x ID (mm)	Nominal Bore (inches)
1149	41	32	1238 x 965	1111 x 965	38 (950)
1200	41	36	1289 x 1016	1162 x 1016	40 (1000)
1257	41	36	1346 x 1067	1219 x 1067	42 (1050)
1314	41	40	1403 x 1118	1276 x 1118	44 (1100)
1365	41	40	1454 x 1168	1327 x 1168	46 (1150)
1422	41	44	1511 x 1219	1384 x 1219	48 (1200)
1480	48	44	1568 x 1270	1435 x 1270	50 (1250)
1537	48	44	1626 x 1321	1492 x 1321	52 (1300)
1594	48	44	1683 x 1372	1549 x 1372	54 (1350)
1651	48	48	1746 x 1422	1607 x 1422	56 (1400)
1708	48	48	1803 x 1473	1664 x 1473	58 (1450)
1759	48	52	1854 x 1524	1715 x 1524	60 (1500)

ASME B16.47 A Class 300:

Full Face gasket				LB.C. Gasket	Nominal Bore (inches)
Bolt P.C.D.(mm)	Hole Diameter(mm)	Number of Bolt Holes	OD x ID (mm)	OD x ID (mm)	Nominal Bore (inches)
743	41	24	838 x 559	705 x 559	22 (550)
876	44	28	972 x 660	835 x 660	26 (650)
940	44	28	1035 x 711	899 x 711	28 (700)
997	48	28	1092 x 762	953 x 762	30 (750)
1054	51	28	1149 x 813	1007 x 813	32 (800)
1105	51	28	1207 x 864	1057 x 864	34 (850)
1168	54	32	1270 x 914	1118 x 914	36 (900)
1092	41	32	1168 x 965	1054 x 965	38 (950)
1156	44	32	1238 x 1016	1115 x 1016	40 (1000)
1207	44	32	1289 x 1067	1165 x 1067	42 (1050)
1264	48	32	1353 x 1118	1219 x 1118	44 (1100)
1321	51	28	1416 x 1168	1273 x 1168	46 (1150)
1372	51	32	1467 x 1219	1324 x 1219	48 (1200)
1429	54	32	1581 x 1321	1378 x 1270	50 (1250)
1480	54	32	1657 x 1372	1429 x 1321	52 (1300)
1579	60	28	1683 x 1372	1492 x 1372	54 (1400)
1600	60	28	1708 x 1422	1543 x 1422	56 (1450)
1651	60	32	1759 x 1473	1594 x 1473	58 (1500)
1702	60	32	1810 x 1524	1645 x 1524	60 (1550)

ASME B16.47 A Class 600:

Full Face gasket				LB.C. Gasket	Nominal Bore (inches)
Bolt P.C.D.(mm)	Hole Diameter(mm)	Number of Bolt Holes	OD x ID (mm)	OD x ID (mm)	Nominal Bore (inches)
778	48	24	870 x 559	733 x 559	22 (550)
914	51	28	1016 x 660	867 x 660	26 (650)
965	54	28	1073 x 711	914 x 711	28 (700)
1022	54	28	1130 x 762	972 x 762	30 (750)
1080	60	28	1194 x 813	1022 x 813	32 (800)
1130	60	28	1245 x 864	1073 x 864	34 (850)
1194	67	28	1314 x 914	1130 x 914	36 (900)
1162	60	28	1270 x 965	1105 x 965	38 (950)
1213	60	32	1321 x 1016	1156 x 1016	40 (1000)
1283	67	28	1403 x 1067	1219 x 1067	42 (1050)
1334	67	32	1454 x 1118	1270 x 1118	44 (1100)
1391	67	32	1511 x 1168	1327 x 1168	46 (1150)
1461	73	32	1594 x 1219	1391 x 1219	48 (1200)
1524	79	28	1670 x 1270	1448 x 1270	50 (1250)
1575	79	32	1721 x 1321	1499 x 1321	52 (1300)
1632	79	32	1778 x 1372	1556 x 1372	54 (1350)
1695	86	32	1854 x 1422	1613 x 1422	56 (1400)
1746	86	32	1905 x 1473	1664 x 1473	58 (1450)
1822	92	28	1994 x 1524	1721 x 1524	60 (1500)

ASME B16.47 B Class 150:

Full Face gasket				LB.C. Gasket	Nominal Bore (inches)
Bolt P.C.D.(mm)	Hole Diameter(mm)	Number of Bolt Holes	OD x ID (mm)	OD x ID (mm)	Nominal Bore (inches)
745	22	36	786 x 660	725 x 660	26 (650)
795	22	40	837 x 711	776 x 711	28 (700)
846	22	44	887 x 762	827 x 762	30 (750)
900	22	48	941 x 813	881 x 813	32 (800)
957	25	40	1005 x 864	935 x 864	34 (850)
1010	25	44	1057 x 914	987 x 914	36 (900)
1070	29	40	1124 x 965	1045 x 965	38 (950)
1121	29	44	1175 x 1016	1095 x 1016	40 (1000)
1172	29	48	1226 x 1067	1146 x 1067	42 (1050)
1222	29	52	1276 x 1118	1197 x 1118	44 (1100)
1284	32	40	1341 x 1168	1256 x 1168	46 (1150)
1335	32	44	1392 x 1219	1307 x 1219	48 (1200)
1386	32	48	1443 x 1270	1357 x 1270	50 (1250)
1437	32	52	1494 x 1321	1408 x 1321	52 (1300)
1492	32	56	1549 x 1372	1464 x 1372	54 (1350)
1543	32	60	1600 x 1422	1514 x 1422	56 (1400)
1611	35	48	1675 x 1473	1580 x 1473	58 (1450)
1662	35	52	1726 x 1524	1630 x 1524	60 (1500)

ASME B16.47 B Class 300:

Full Face gasket				I.B.C. Gasket	Nominal Bore (inches)
Bolt P.C.D.(mm)	Hole Diameter(mm)	Number of Bolt Holes	OD x ID (mm)	OD x ID (mm)	Nominal Bore (inches)
803	35	32	867 x 660	772 x 660	26 (650)
857	35	36	921 x 711	826 x 711	28 (700)
921	38	36	991 x 762	886 x 762	30 (750)
978	41	32	1054 x 813	940 x 813	32 (800)
1032	41	36	1108 x 864	994 x 864	34 (850)
1089	44	32	1172 x 914	1048 x 914	36 (900)
1140	44	36	1222 x 965	1099 x 965	38 (950)
1191	44	40	1273 x 1016	1149 x 1016	40 (1000)
1245	48	36	1334 x 1067	1200 x 1067	42 (1050)
1295	48	40	1384 x 1118	1251 x 1118	44 (1100)
1365	51	36	1461 x 1168	1318 x 1168	46 (1150)
1416	51	40	1511 x 1219	1368 x 1219	48 (1200)
1467	51	44	1562 x 1270	1419 x 1270	50 (1250)
1518	51	48	1613 x 1321	1470 x 1321	52 (1300)
1578	51	48	1673 x 1372	1556 x 1372	54 (1350)
1651	60	36	1765 x 1422	1594 x 1422	56 (1400)
1713	60	40	1827 x 1473	1673 x 1473	58 (1450)
1764	60	40	1878 x 1524	1705 x 1524	60 (1500)

ASME B16.47 B Class 600:

Full Face gasket				I.B.C. Gasket	Nominal Bore (inches)
Bolt P.C.D.(mm)	Hole Diameter(mm)	Number of Bolt Holes	OD x ID (mm)	OD x ID (mm)	Nominal Bore (inches)
806	44	28	889 x 660	765 x 660	26 (650)
864	48	28	953 x 711	819 x 711	28 (700)
927	51	28	1022 x 762	879 x 762	30 (750)
984	54	28	1086 x 813	933 x 813	32 (800)
1054	60	24	1162 x 864	997 x 864	34 (850)
1105	60	28	1213 x 914	1048 x 914	36 (900)

Dimensions suitable for DIN Standard Flanges

PN10:

Full Face gasket				LB.C. Gasket	Nominal Bore
Bolt P.C.D.(mm)	Hole Diameter(mm)	Number of Bolt	OD x ID (mm)	OD x ID (mm)	Nominal Bore
60	14	4	90 x 18	45 x 18	10
65	14	4	95 x 22	50 x 22	15
75	14	4	105 x 28	60 x 28	20
85	14	4	115 x 35	70 x 35	25
100	18	4	140 x 43	82 x 43	32
110	18	4	150 x 49	92 x 49	40
125	18	4	165 x 61	107 x 61	50
145	18	8*	185 x 77	127 x 77	65
160	18	8	200 x 90	142 x 90	80
180	18	8	220 x 115	162 x 115	100
210	18	8	250 x 141	192 x 141	125
240	22	8	285 x 169	218 x 169	150
295	22	8	340 x 220	273 x 220	200
350	22	12	395 x 274	328 x 274	250
400	22	12	445 x 325	378 x 325	300
460	22	16	505 x 356	438 x 356	350
515	26	16	565 x 407	489 x 407	400
565	26	20	615 x 458	539 x 458	450
620	26	20	670 x 508	594 x 508	500
725	30	20	780 x 610	695 x 610	600
840	30	24	895 x 712	810 x 712	700
950	33	24	1015 x 813	917 x 813	800
1050	33	28	1115 x 915	1017 x 915	900
1160	36	28	1230 x 1016	1124 x 1016	1000
1270	39	32	1340 x 1120	1231 x 1120	1100
1380	39	32	1455 x 1220	1341 x 1220	1200
1590	42	36	1675 x 1420	1548 x 1420	1400
1700	42	36	1785 x 1520	1658 x 1520	1500
1820	48	40	1915 x 1620	1772 x 1620	1600
2020	48	44	2115 x 1820	1972 x 1820	1800
2230	48	48	2325 x 2020	2182 x 2020	2000

PN16:

Full Face gasket				I.B.C. Gasket	Nominal Bore
Bolt P.C.D.(mm)	Hole Diameter(mm)	Number of Bolt	OD x ID (mm)	OD x ID (mm)	Nominal Bore
60	14	4	90 x 18	45 x 18	10
65	14	4	95 x 22	50 x 22	15
75	14	4	105 x 28	60 x 28	20
85	14	4	115 x 35	70 x 35	25
100	18	4	140 x 43	82 x 43	32
110	18	4	150 x 49	92 x 49	40
125	18	4	165 x 61	107 x 61	50
145	18	8*	185 x 77	127 x 77	65
160	18	8	200 x 90	142 x 90	80
180	18	8	220 x 115	162 x 115	100
210	18	8	250 x 141	192 x 141	125
240	22	8	285 x 169	218 x 169	150
295	22	12	340 x 220	273 x 220	200
355	26	12	405 x 274	329 x 274	250
410	26	12	460 x 325	384 x 325	300
470	26	16	520 x 356	444 x 356	350
525	30	16	580 x 407	495 x 407	400
585	30	20	640 x 458	555 x 458	450
650	33	20	715 x 508	617 x 508	500
770	36	20	840 x 610	734 x 610	600
840	36	24	910 x 712	804 x 712	700
950	39	24	1025 x 813	911 x 813	800
1050	39	28	1125 x 915	1011 x 915	900
1170	42	28	1255 x 1016	1128 x 1016	1000
1270	42	32	1355 x 1120	1228 x 1120	1100
1390	48	32	1485 x 1220	1342 x 1220	1200
1590	48	36	1685 x 1420	1542 x 1420	1400
1710	56	36	1820 x 1520	1654 x 1520	1500
1820	56	40	1930 x 1620	1764 x 1620	1600
2020	56	44	2130 x 1820	1964 x 1820	1800
2230	62	48	2345 x 2020	2168 x 2020	2000

PN25:

Full Face gasket				I.B.C. Gasket	Nominal Bore
Bolt P.C.D.(mm)	Hole Diameter(mm)	Number of Bolt	OD x ID (mm)	OD x ID (mm)	Nominal Bore
60	14	4	90 x 18	45 x 18	10
65	14	4	95 x 22	50 x 22	15
75	14	4	105 x 28	60 x 28	20
85	14	4	115 x 35	70 x 35	25
100	18	4	140 x 43	82 x 43	32
110	18	4	150 x 49	92 x 49	40
125	18	4	165 x 61	107 x 61	50
145	18	8	185 x 77	127 x 77	65
160	18	8	200 x 90	142 x 90	80
180	18	8	220 x 115	162 x 115	100
210	18	8	250 x 141	192 x 141	125
240	22	12	285 x 169	218 x 169	150
295	22	12	340 x 220	273 x 220	200
355	26	12	405 x 274	329 x 274	250
410	26	16	460 x 325	384 x 325	300
470	26	16	520 x 356	444 x 356	350
550	36	16	620 x 407	514 x 407	400
600	36	20	670 x 458	564 x 458	450
660	36	20	730 x 508	624 x 508	500
770	39	20	845 x 610	731 x 610	600
875	42	24	960 x 712	833 x 712	700
990	48	24	1085 x 813	942 x 813	800
1090	48	28	1185 x 915	1042 x 915	900
1210	56	28	1320 x 1016	1154 x 1016	1000
1310	56	32	1420 x 1120	1254 x 1120	1100
1420	56	32	1530 x 1220	1364 x 1220	1200
1640	62	36	1755 x 1420	1578 x 1420	1400
1750	62	36	1865 x 1520	1688 x 1520	1500
1860	62	40	1975 x 1620	1798 x 1620	1600
2070	70	44	2195 x 1820	2000 x 1820	1800
2300	70	48	2425 x 2020	2230 x 2020	2000

PN40:

Full Face gasket				I.B.C. Gasket	Nominal Bore
Bolt P.C.D.(mm)	Hole Diameter(mm)	Number of Bolt	OD x ID (mm)	OD x ID (mm)	Nominal Bore
60	14	4	90 x 18	45 x 18	10
65	14	4	95 x 22	50 x 22	15
75	14	4	105 x 28	60 x 28	20
85	14	4	115 x 35	70 x 35	25
100	18	4	140 x 43	82 x 43	32
110	18	4	150 x 49	92 x 49	40
125	18	4	165 x 61	107 x 61	50
145	18	8	185 x 77	127 x 77	65
160	18	8	200 x 90	142 x 90	80
190	22	8	235 x 115	168 x 115	100
220	26	8	270 x 141	194 x 141	125
250	26	8	300 x 169	224 x 169	150
320	30	12	375 x 220	290 x 220	200
385	33	12	450 x 274	352 x 274	250
450	33	16	515 x 325	417 x 325	300
510	36	16	580 x 356	474 x 356	350
585	39	16	660 x 407	546 x 407	400
610	39	20	685 x 458	571 x 458	450
670	42	20	755 x 508	628 x 508	500
795	48	20	890 x 610	747 x 610	600
900	48	24	995 x 710	852 x 710	700
1030	56	24	1140 x 820	974 x 820	800
1140	56	28	1250 x 910	1084 x 910	900
1250	56	28	1360 x 1010	1194 x 1010	1000

PN40:

Full Face gasket				I.B.C. Gasket	Nominal Bore
Bolt P.C.D.(mm)	Hole Diameter(mm)	Number of Bolt	OD x ID (mm)	OD x ID (mm)	Nominal Bore
60	14	4	90 x 18	45 x 18	10
65	14	4	95 x 22	50 x 22	15
75	14	4	105 x 28	60 x 28	20
85	14	4	115 x 35	70 x 35	25
100	18	4	140 x 43	82 x 43	32
110	18	4	150 x 49	92 x 49	40
125	18	4	165 x 61	107 x 61	50
145	18	8	185 x 77	127 x 77	65
160	18	8	200 x 90	142 x 90	80
190	22	8	235 x 115	168 x 115	100
220	26	8	270 x 141	194 x 141	125
250	26	8	300 x 169	224 x 169	150
320	30	12	375 x 220	290 x 220	200
385	33	12	450 x 274	352 x 274	250
450	33	16	515 x 325	417 x 325	300
510	36	16	580 x 356	474 x 356	350
585	39	16	660 x 407	546 x 407	400
610	39	20	685 x 458	571 x 458	450
670	42	20	755 x 508	628 x 508	500
795	48	20	890 x 610	747 x 610	600
900	48	24	995 x 710	852 x 710	700
1030	56	24	1140 x 820	974 x 820	800
1140	56	28	1250 x 910	1084 x 910	900
1250	56	28	1360 x 1010	1194 x 1010	1000
