گسگت رینگ جوینت (RTJ)

ساختار محصول

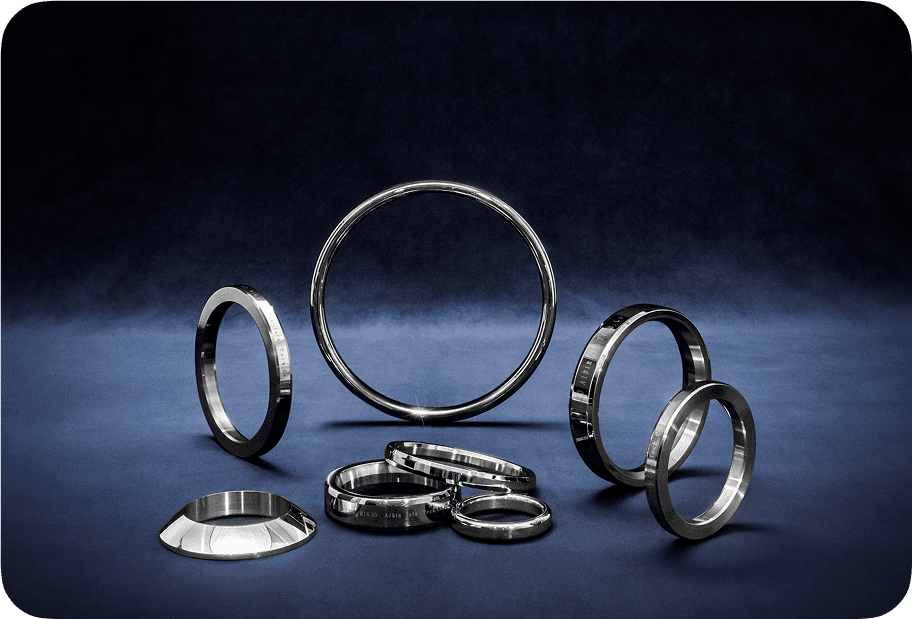

گسکت های رینگ جوینت آب بندهایی فلزی برای کاربرد در دما و فشار بالا هستند که برای فلنج های با شیار حلقه ای مناسب می باشند. این نوع واشرها در صنایع نفت، گاز، پتروشیمی و ولوهای فشار بالا مورد استفاده قرار می گیرند. گسکت های رینگ جوینت برای آب بندی با تماس خطی و یا سطحی با زاویه بین فلنج مورد نظر و گسکت طراحی شده اند. از طریق اعمال فشار بر سطح آب بندی بوسیله نیروی پیچ ، فلز نرم تر (گسکت) به ساختار میکرو ذره ای متریال سخت تر (فلنج) نفوذ می کند و آب بندی بسیار کارآمد و مستحکمی را ایجاد می کند.

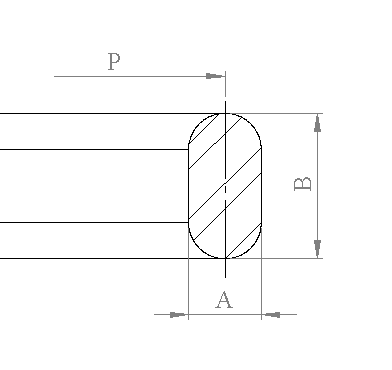

Products: R (Oval)

سطح تماس در نوع بیضی شکل (Oval) به صورت خطی بوده و سبب آب بندی قابل اطمینانی می گردد. این گسکت ها براساس استانداردهایAPI 6A یا ASME B16.20 طراحی شده اند و برای فلنج های بر طبق استاندارد های ASME/ANSI B16.5 مناسب هستند.

جنس مواد

Material	Standard Grade / Abbreviation	Minimum Temperature(°C)	Maximum Temperature(°C)	Maximum Hardness
Soft Iron	D	-60	400	90 HB
Carbon Steel	S	-40	540	120 HB
Low Alloy Steel	F5	-125	500	130 HB
Stainless Steel	304	-195	760	160 HB
Stainless Steel	304L	-195	760	160 HB
Stainless Steel	316	-100	600	160 HB
Stainless Steel	316L	-100	800	160 HB
Stainless Steel	321	-195	800	160 HB
Stainless Steel	347	-195	925	160 HB
Stainless Steel	410	-20	500	170 HB
MONEL	400	-130	820	130 HB
Inconel	600	-100	1090	200 HB
Inconel	625	-100	1090	200 HB
Incoloy	800	-100	870	200 HB
Incoloy	825	-100	870	160 HB
Hastelloy	C 276	-185	1090	200 HB

ابعاد:

1
استاندارد ASME B16.20
2
استاندارد API 6A
3
مطابق با درخواست مشتری

Standards for Ring Joint Gasket used with flanges
Flange Standards	Ring Joints Gasket standard	Ring Joints Gasket style
ASME B 16.5 / ASME B 16.47	ASME B 16.20 / API 6A	R
API 6B	ASME B 16.20 / API 6A	RX
API 6BX	API 6A	BX

:Ring joint gasket material - Hardness Chart

36"	34"	32"	30"	28"	26"	24"	22"	20"	18"	16"	14"	12"	10"	8"	6"	5"	4"	3-1/2"	3"	2-1/2"	2"	1-1/2"	1-1/4"	1"	3/4"	1/2"	Nominal Pipe
-	-	-	-	-	-	R-76	R-80	R-72	R-68	R-64	R-59	R-56	R-52	R-48	R-43	R-40	R-36	R-33	R-29	R-25	R-22	R-19	R-17	R-15	-	-	150	Pressure Rating in Ibs	ASME	Ring Number at Pressure Class Rating
R-98	R-97	R-96	R-95	R-94	R-93	R-77	R-81	R-73	R-69	R-65	R-61	R-57	R-53	R-49	R-45	R-41	R-37	R-34	R-31	R-26	R-23	R-20	R-18	R-16	R-13	R-11	300/600
R-105	R-102	R-103	R-102	R-101	R-100	R-78	-	R-74	R-70	R-66	R-62	R-57	R-53	R-49	R-45	R-41	R-37	-	R-31	R-27	R-24	R-20	R-18	R-16	R-14	R-12	900
-	-	-	-	-	-	R-79	-	R-75	R-71	R-67	R-63	R-58	R-54	R-50	R-46	R-44	R-39	-	R-35	R-27	R-24	R-20	R-18	R-16	R-14	R-12	1500
R-105	R-104	R-103	R-102	R-101	-	-	-	-	-	-	-	R-60	R-55	R-51	R-47	R-42	R-38	-	R-32	R-28	R-26	R-23	R-21	R-18	R-16	R-13	2500
-	-	-	-	-	-	-	-	R-73	R-69	R-65	R-61	R-57	R-53	R-49	R-45	R-41	R-37	-	R-31	R-26	R-23	R-20	R-18	R-16	-	-	2000/3000		API-6B
-	-	-	-	-	-	-	-	-	-	-	-	-	R-54	R-50	R-46	R-44	R-39	R-37	R-35	R-27	R-24	R-20	R-18	R-16	-	-	5000		API-6B

20"	18"	16"	14"	12"	10"	8"	6"	5"	4-1/16"	4"	3-1/2"	3"	2-9/16"	2-1/2"	2"	1-13/16"	1-1/2"	1-3/8"	1"	Nominal Pipe
RX-73	RX-69	RX-65	-	RX-57	RX-53	RX-49	RX-45	RX-41	-	RX-37	-	RX-31	-	RX-26	RX-23	-	RX-20	-	-	2000 lbs	API-6B	Ring Number at
RX-82	RX-73	RX-69	-	RX-57	RX-53	RX-49	RX-45	RX-41	-	RX-37	-	RX-31	-	RX-27	RX-24	-	RX-20	-	-	3000 lbs
-	-	-	RX-63	-	RX-54	RX-50	RX-46	RX-44	RX-215	RX-39	-	RX-35	RX-201	RX-27	RX-24	RX-205	RX-20	RX-201	-	5000 lbs

30"	26-3/4"	21-1/4"	18-3/4"	16-3/4"	13-5/8"	11–5/32"	11"	9"	8-9/16"	7-1/16"	6-5/8"	5-1/8"	4-1/16"	3-1/16"	2-9/16"	2-1/16"	1-13/16"	1-11/16"	Nominal Pipe
BX-303	BX-167	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	2000 lbs	API-6BX	Ring Number at Pressure Class Rating
BX-303	BX-168	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	3000 lbs
-	-	BX-165	BX-163	BX-161 BX-162	BX-160		-	-	-	-	-	-	-	-	-	-	-	-	5000 lbs
-	-	BX-166	BX-164	BX-162	BX-159	BX-172	BX-158	BX-157	BX-171	BX-156	BX-170	BX-169	BX-155	BX-154	BX-153	BX-152	BX-151	BX-150	10000 lbs
-	-	-	BX-164	BX-162	BX-159	BX-172	BX-158	BX-157	BX-171	BX-156	BX-170	-	BX-155	BX-154	BX-153	BX-152	BX-151	BX-150	15000 lbs
-	-	-	-	-	BX-159	-	BX-158	BX-157	-	BX-156	-	-	BX-155	BX-154	BX-153	BX-152	BX-151	-	20000 lbs

اطلاعات تکمیلی

:Type R Oval RTJ Dimensions to ASME B16.20

Height (mm)	Width (mm)	Pitch Diameter (mm)	Class	Nominal Size	Ring Number
11.2	6.4	34.1	300,600	"1/2	R-11
14.2	8.0	39.7	900,1500	"1/2	R-12
14.2	8.0	42.9	300,600	"3/4	R-13
14.2	8.0	42.9	2500	"1/2	R-13
14.2	8.0	44.5	900,1500	"3/4	R-14
14.2	8.0	47.6	150	"1	R-15
14.2	8.0	50.8	300,600,900,1500	"1	R-16
14.2	8.0	50.8	2500	"3/4	R-16
14.2	8.0	57.2	150	"1.1/4	R-17
14.2	8.0	60.3	300,600,900,1500	"1.1/4	R-18
14.2	8.0	60.3	2500	"1	R-18
14.2	8.0	65.1	150	"1.1/2	R-19
14.2	8.0	68.3	300,600,900,1500	"1.1/2	R-20
17.5	11.1	72.2	2500	"1.1/4	R-21
14.2	8.0	82.6	150	"2	R-22
17.5	11.1	82.6	300,600	"2	R-23
17.5	11.1	82.6	2500	"1.1/2	R-23
17.5	11.1	95.3	900,1500	"2	R-24
14.2	8.0	101.6	150	"2.1/2	R-25
17.5	11.1	101.6	300,600	"2.1/2	R-26
17.5	11.1	101.6	2500	"2	R-26
17.5	11.1	108.0	900,1500	"2.1/2	R-27
19.1	12.7	111.1	2500	"2.1/2	R-28
14.2	8.0	114.3	150	"3	R-29
17.5	11.1	117.5	300	(1)"3	R-30
17.5	11.1	123.8	300,600,900	"3	R-31
19.1	12.7	127.0	2500	"3	R-32
14.2	8.0	131.8	150	"3.1/2	R-33
17.5	11.1	131.8	300,600	"3.1/2	R-34
17.5	11.1	136.5	1500	"3	R-35
14.2	8.0	149.2	150	"4	R-36
17.5	11.1	149.2	300,600,900	"4	R-37
22.4	15.9	157.2	2500	"4	R-38
17.5	11.1	161.9	1500	"4	R-39
14.2	8.0	171.5	150	"5	R-40
17.5	11.1	181.0	300,600,900	"5	R-41
25.4	19.1	190.5	2500	"5	R-42
14.2	8.0	193.7	150	"6	R-43
17.5	11.1	193.7	1500	"5	R-44
17.5	11.1	211.2	300,600,900	"6	R-45

Height (mm)	Width (mm)	Pitch Diameter (mm)	Class	Nominal Size	Ring Number
19.1	12.7	211.2	1500	"6	R-46
25.4	19.1	228.6	2500	"6	R-47
14.2	8.0	247.7	150	"8	R-48
17.5	11.1	269.9	300,600,900	"8	R-49
22.4	15.9	269.9	1500	"8	R-50
28.7	22.2	279.4	2500	"8	R-51
14.2	8.0	304.8	150	"10	R-52
17.5	11.1	323.9	300,600,900	"10	R-53
22.4	15.9	323.9	1500	"10	R-54
36.6	28.6	342.9	2500	"10	R-55
14.2	8.0	381.0	150	"12	R-56
17.5	11.1	381.0	300,600,900	"12	R-57
28.7	22.2	381.0	1500	"12	R-58
14.2	8.0	396.9	150	"14	R-59
39.6	31.8	406.4	2500	"12	R-60
17.5	11.1	419.1	300,600	"14	R-61
22.4	15.9	419.1	900	"14	R-62
33.3	25.4	419.1	1500	"14	R-63
14.2	8.0	454.0	150	"16	R-64
17.5	11.1	469.9	300,600	"16	R-65
22.4	15.9	469.9	900	"16	R-66
36.6	28.6	469.9	1500	"16	R-67
14.2	8.0	517.5	150	"18	R-68
17.5	11.1	533.4	300,600	"18	R-69
25.4	19.1	533.4	900	"18	R-70
36.6	28.6	533.4	1500	"18	R-71
14.2	8.0	558.8	150	"20	R-72
19.1	12.7	584.2	300,600	"20	R-73
25.4	19.1	584.2	900	"20	R-74
39.6	31.8	584.2	1500	"20	R-75
14.2	8.0	673.1	150	"24	R-76
22.4	15.9	692.2	300,600	"24	R-77
28.7	25.4	692.2	900	"24	R-78
44.5	34.9	692.2	1500	"24	R-79
17.5	11.1	228.6	-	-	R-92

:Type R Octagonal RTJ Dimensions to ASME B16.20

Radius (mm)	Width of Flat (mm)	Height (mm)	Width (mm)	Pitch Diameter (mm)	Class	Nominal Size	Ring Number
1.5	4.3	9.7	6.4	34.1	300,600	"1/2	R-11
1.5	5.2	12.7	8.0	39.7	900,1500	"1/2	R-12
1.5	5.2	12.7	8.0	42.9	300,600	"3/4	R-13
1.5	5.2	12.7	8.0	42.9	2500	"1/2	R-13
1.5	5.2	12.7	8.0	44.5	900,1500	"3/4	R-14
1.5	5.2	12.7	8.0	47.6	150	"1	R-15
1.5	5.2	12.7	8.0	50.8	300,600,900,1500	"1	R-16
1.5	5.2	12.7	8.0	50.8	2500	"3/4	R-16
1.5	5.2	12.7	8.0	57.2	150	"1.1/4	R-17
1.5	5.2	12.7	8.0	60.3	300,600,900,1500	"1.1/4	R-18
1.5	5.2	12.7	8.0	60.3	2500	"1	R-18
1.5	5.2	12.7	8.0	65.1	150	"1.1/2	R-19
1.5	5.2	12.7	8.0	68.3	300,600,900,1500	"1.1/2	R-20
1.5	7.7	16.0	11.1	72.2	2500	"1.1/4	R-21
1.5	5.2	12.7	8.0	82.6	150	"2	R-22
1.5	7.7	16.0	11.1	82.6	300,600	"2	R-23
1.5	7.7	16.0	11.1	82.6	2500	"1.1/2	R-23
1.5	7.7	16.0	11.1	95.3	900,1500	"2	R-24
1.5	5.2	12.7	8.0	101.6	150	"2.1/2	R-25
1.5	7.7	16.0	11.1	101.6	300,600	"2.1/2	R-26
1.5	7.7	16.0	11.1	101.6	2500	"2	R-26
1.5	7.7	16.0	11.1	108.0	900,1500	"2.1/2	R-27
1.5	8.7	17.5	12.7	111.1	2500	"2.1/2	R-28
1.5	5.2	12.7	8.0	114.3	150	"3	R-29
1.5	7.7	16.0	11.1	117.5	300	(1) "3	R-30
1.5	7.7	16.0	11.1	123.8	300,600,900	"3	R-31
1.5	8.7	17.5	12.7	127.0	2500	"3	R-32
1.5	5.2	12.7	8.0	131.8	150	"3.1/2	R-33
1.5	7.7	16.0	11.1	131.8	300,600	"3.1/2	R-34
1.5	7.7	16.0	11.1	136.5	1500	"3	R-35
1.5	5.2	12.7	8.0	149.2	150	"4	R-36
1.5	7.7	16.0	11.1	149.2	300,600,900	"4	R-37
1.5	10.5	20.6	15.9	157.2	2500	"4	R-38
1.5	7.7	16.0	11.1	161.9	1500	"4	R-39
1.5	5.2	12.7	8.0	171.5	150	"5	R-40
1.5	7.7	16.0	11.1	181.0	300,600,900	"5	R-41
1.5	12.3	23.9	19.1	190.5	2500	"5	R-42
1.5	5.2	12.7	8.0	193.7	150	"6	R-43
1.5	7.7	16.0	11.1	193.7	1500	"5	R-44
1.5	7.7	16.0	11.1	211.2	300,600,900	"6	R-45

Radius (mm)	Width of Flat (mm)	Height (mm)	Width (mm)	Pitch Diameter (mm)	Class	Nominal Size	Ring Number
1.5	8.7	17.5	12.7	211.2	1500	"6	R-46
1.5	12.3	23.9	19.1	228.6	2500	"6	R-47
1.5	5.2	12.7	8.0	247.7	150	"8	R-48
1.5	7.7	16.0	11.1	269.9	300,600,900	"8	R-49
1.5	10.5	20.6	15.9	269.9	1500	"8	R-50
1.5	14.8	26.9	22.2	279.4	2500	"8	R-51
1.5	5.2	12.7	8.0	304.8	150	"10	R-52
1.5	7.7	16.0	11.1	323.9	300,600,900	"10	R-53
1.5	10.5	20.6	15.9	323.9	1500	"10	R-54
2.3	19.8	35.1	28.6	342.9	2500	"10	R-55
1.5	5.2	12.7	8.0	381.0	150	"12	R-56
1.5	7.7	16.0	11.1	381.0	300,600,900	"12	R-57
1.5	14.8	26.9	22.2	381.0	1500	"12	R-58
1.5	5.2	12.7	8.0	396.9	150	"14	R-59
2.3	22.3	38.1	31.8	406.4	2500	"12	R-60
1.5	7.7	16.0	11.1	419.1	300,600	"14	R-61
1.5	10.5	20.6	15.9	419.1	900	"14	R-62
2.3	17.3	31.8	25.4	419.1	1500	"14	R-63
1.5	5.2	12.7	8.0	454.0	150	"16	R-64
1.5	7.7	16.0	11.1	469.9	300,600	"16	R-65
1.5	10.5	20.6	15.9	469.9	900	"16	R-66
2.3	19.8	35.1	28.6	469.9	1500	"16	R-67
1.5	5.2	12.7	8.0	517.5	150	"18	R-68
1.5	7.7	16.0	11.1	533.4	300,600	"18	R-69
1.5	12.3	23.9	19.1	533.4	900	"18	R-70
2.3	19.8	35.1	28.6	533.4	1500	"18	R-71
1.5	5.2	12.7	8.0	558.8	150	"20	R-72
1.5	8.7	17.5	12.7	584.2	300,600	"20	R-73
1.5	12.3	23.9	19.1	584.2	900	"20	R-74
2.3	22.3	38.1	31.8	584.2	1500	"20	R-75
1.5	5.2	12.7	8.0	673.1	150	"24	R-76
1.5	10.5	20.6	15.9	692.2	300,600	"24	R-77
2.3	17.3	31.8	25.4	692.2	900	"24	R-78
2.3	24.8	41.4	34.9	692.2	1500	"24	R-79
1.5	5.2	12.7	8.0	616.0	150	"22	R-80
1.5	9.6	19.1	14.3	635.0	300,600	"22	R-81
1.5	7.7	16.0	11.1	57.2	10000	"1	R-82
1.5	7.7	16.0	11.1	63.5	10000	"1.1/2	R-84
1.5	8.7	17.5	12.7	79.4	10000	"2	R-85
1.5	10.5	20.6	15.9	90.5	10000	"2.1/2	R-86

Radius (mm)	Width of Flat (mm)	Height (mm)	Width (mm)	Pitch Diameter (mm)	Class	Nominal Size	Ring Number
1.5	10.5	20.6	15.9	100.0	10000	"3	R-87
1.5	12.3	23.9	19.1	123.8	10000	"4	R-88
1.5	12.3	23.9	19.1	114.3	10000	"3.1/2	R-89
1.5	14.8	26.9	22.2	155.6	10000	"5	R-90
1.5	22.3	38.1	31.8	260.4	10000	"10	R-91
1.5	7.7	16.0	11.1	228.6	-	-	R-92
1.5	12.3	23.9	19.1	749.3	300,600	"26	R-93
1.5	12.3	23.9	19.1	800.1	300,600	"28	R-94
1.5	12.3	23.9	19.1	857.3	300,600	"30	R-95
1.5	14.8	26.9	22.2	914.4	300,600	"32	R-96
1.5	14.8	26.9	22.2	965.2	300,600	"34	R-97
1.5	14.8	26.9	22.2	1022.4	300,600	"36	R-98
1.5	7.7	16.0	11.1	235.0	2000,3000	"8	R-99
2.3	19.8	35.1	28.6	749.3	900	"26	R-100
2.3	22.3	38.1	31.8	800.1	900	"28	R-101
2.3	22.3	38.1	31.8	857.3	900	"30	R-102
2.3	22.3	38.1	31.8	914.4	900	"32	R-103
2.3	24.8	41.4	34.9	965.2	900	"34	R-104
2.3	24.8	41.4	34.9	1022.4	900	"36	R-105

:Type RX RTJ Dimensions to ASME B16.20

Hole Size (mm)	Radius (mm)	Height of Ring (mm)	Height of outside bevel (mm)	Width of Flat (mm)	Width (mm)	Outside Diameter (mm)	Class	Nominal Size	Ring Number
-	1.5	19.1	3.2	4.6	8.7	76.2	2000,3000,5000	"1.1/2	RX-20
-	1.5	25.4	4.2	6.5	11.9	93.3	2000	"2	RX-23
-	1.5	25.4	4.2	6.5	11.9	106.0	3000,5000	"2	RX-24
-	1.5	19.1	3.2	4.6	8.7	109.6	5000	"3.1/8	RX-25
-	1.5	25.4	4.2	6.5	11.9	111.9	2000	"2.1/2	RX-26
-	1.5	25.4	4.2	6.5	11.9	118.3	3000,5000	"2.1/2	RX-27
-	1.5	25.4	4.2	6.5	11.9	134.5	2000,3000	"3	RX-31
-	1.5	25.4	4.2	6.5	11.9	147.2	5000	"3	RX-35
-	1.5	25.4	4.2	6.5	11.9	159.9	2000,3000	"4	RX-37
-	1.5	25.4	4.2	6.5	11.9	172.6	5000	"4	RX-39
-	1.5	25.4	4.2	6.5	11.9	191.7	2000,3000	"5	RX-41
-	1.5	25.4	4.2	6.5	11.9	204.4	5000	"5	RX-44
-	1.5	25.4	4.2	6.5	11.9	221.8	2000,3000	"6	RX-45
-	1.5	28.6	4.8	6.7	13.5	222.3	5000	"6	RX-46
-	1.5	41.3	6.9	10.3	19.8	245.3	5000	(1)"8	RX-47
-	1.5	25.4	4.2	6.5	11.9	280.6	2000,3000	"8	RX-49
-	1.5	31.8	5.3	8.5	16.7	283.4	5000	"8	RX-50
-	1.5	25.4	4.2	6.5	11.9	334.6	2000,3000	"10	RX-53
-	1.5	31.8	5.3	8.5	16.7	337.3	5000	"10	RX-54
-	1.5	25.4	4.2	6.5	11.9	391.7	2000,3000	"12	RX-57
-	2.3	50.8	8.5	14.8	27.0	441.7	5000	"14	RX-63
-	1.5	25.4	4.2	6.5	11.9	480.6	2000	"16	RX-65
-	1.5	31.8	5.3	8.5	16.7	458.0	3000	"16	RX-66
-	1.5	25.4	4.2	6.5	11.9	544.1	2000	"18	RX-69
-	2.3	41.3	6.9	10.3	19.8	550.1	3000	"18	RX-70
-	1.5	31.8	5.3	6.7	13.5	596.1	2000	"20	RX-73
-	2.3	41.3	6.9	10.3	19.8	600.9	3000	"20	RX-74
-	1.5	25.4	4.2	6.5	11.9	245.7	2000,3000	(1)"8	RX-99
-	0.5	11.3	1.4	3.2	5.7	51.5	5000	"1.3/8	RX-201
-	0.5	11.1	1.8	3.0	5.6	62.3	5000	"1.13/16	RX-205
-	0.8	19.1	3.2	5.4	9.5	97.6	5000	"2.9/16	RX-210
-	1.5	25.4	4.2	5.3	11.9	140.9	5000	"4.1/16	RX-215

:Type BX RTJ Dimensions to ASME B16.20

Hole Size (mm)	Width of Flat (mm)	Outside Diameter of Flat (mm)	Width of Ring (mm)	Height of Ring (mm)	Outside Diameter (mm)	Class	Nominal Size	Ring Number
1.5	8.0	70.9	9.3	9.3	72.2	10000,15000	"1.11/16	BX-150
1.5	8.3	75.0	9.6	9.6	76.4	10000,15000,20000	"1.13/16	BX-151
1.5	8.8	83.2	10.2	10.2	84.7	10000,15000,20000	"2.1/16	BX-152
1.5	9.8	99.3	11.4	11.4	100.9	10000,15000,20000	"2.9/16	BX-153
1.5	10.6	115.1	12.4	12.4	116.8	10000,15000,20000	"3.1/16	BX-154
1.5	12.2	145.9	14.2	14.2	148.0	10000,15000,20000	"4.1/16	BX-155
3.0	16.0	235.3	18.6	18.6	237.9	10000,15000,20000	"7.1/16	BX-156
3.0	18.0	291.5	21.0	21.0	294.5	10000,15000,20000	"9	BX-157
3.0	19.9	348.8	23.1	23.1	352.0	10000,15000,20000	"11	BX-158
3.0	22.1	423.1	25.7	25.7	426.7	10000,20000	"13.5/8	BX-159
3.0	10.4	399.2	13.7	23.8	402.6	3000	"13.5/8	BX-160
3.0	12.2	487.5	16.2	28.1	491.4	5000	"16.3/4	BX-161
1.5	12.2	473.5	14.2	14.2	475.5	5000,10000,15000	"16.3/4	BX-162
3.0	13.1	551.9	17.4	30.1	556.2	5000	"18.3/4	BX-163
3.0	20.3	564.6	24.6	30.1	570.6	10000,15000	"18.3/4	BX-164
3.0	14.0	620.2	18.5	32.0	624.7	5000	"21.1/4	BX-165
3.0	21.6	635.5	26.1	32.0	640.0	10000	"21.1/4	BX-166
1.5	8.0	754.3	13.1	35.9	759.4	2000	"26.3/4	BX-167
1.5	11.0	760.2	16.1	35.9	765.3	3000	"26.3/4	BX-168
1.5	10.7	171.3	12.9	15.8	173.5	10000	"5.1/8	BX-169
1.5	12.2	216.0	14.2	14.2	218.0	10000,15000	"6.5/8	BX-170
1.5	12.2	265.4	14.2	14.2	267.4	10000,15000	"8.9/16	BX-171
1.5	12.2	331.1	14.2	14.2	333.1	10000,15000	"11.5/32	BX-172
1.5	11.6	847.4	17.0	37.9	852.8	2000,3000	"30	BX-303
